​Sorting lines for saw cuts

​Sorting lines for saw cuts are used for efficient and accurate sorting of cuts intended for processing by cutting on saw lines.

The maximum diameter of such cutouts ranges from:
- 45 cm – for processing with aggregate technology
- 65 cm – for processing on technologies with frame saws
- 110 cm – for processing on band saw technologies

The range of lengths of sorted cut-outs is usually 2 - 6 m, at the request of the customer, the line can be designed for any other length. The approximate output of the line, depending on the average input weight of the cut-outs, the feed speed of the cut-out sorter and the speed of the installed machines, ranges from 30 to 300 thousand m3 of material per year in single-shift operation.

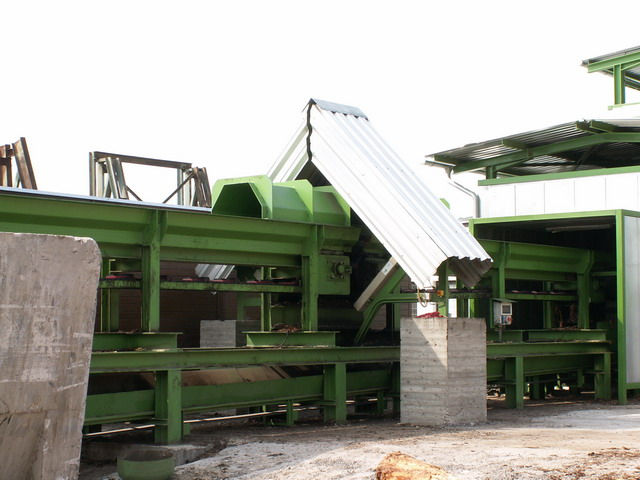

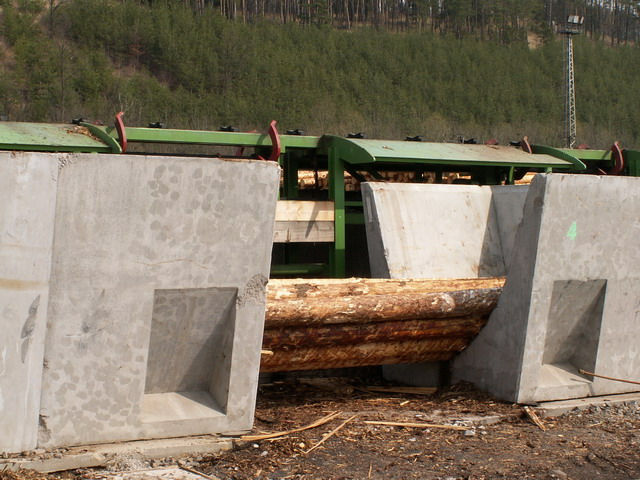

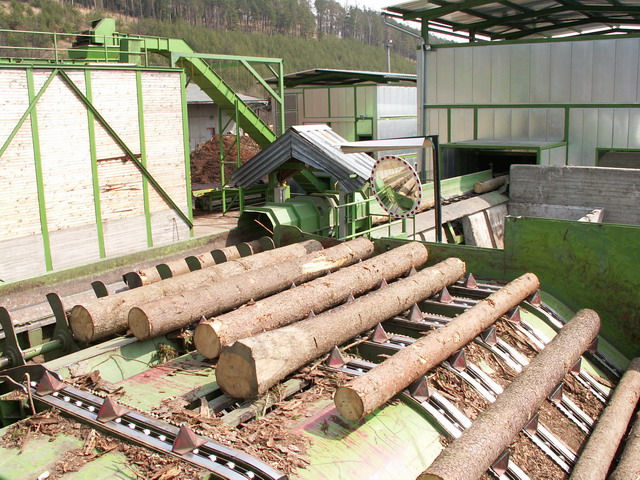

The lines are always configured according to the customer's requirements and can be equipped with a whole range of technological nodes (debarker, reducer of root attacks, metal detector, etc.). The cuttings are stored from trucks or wagons on a transverse chain storage conveyor. The stock is separated into individual trunks automatically by the elevator-dispenser system, followed by an evaluation of the cut quality and its measurement using an electronic measuring system (one or two-projection measuring frames, possibly 3-d measurement). The finished cutouts are punched into a predetermined box through a chain sorter.

With the help of cameras and monitors, the operator only supervises the operation of the entire line and at the same time assesses the quality of individual cutouts.
